Modu-Max CTS Instrument Storage

Electronic Lock

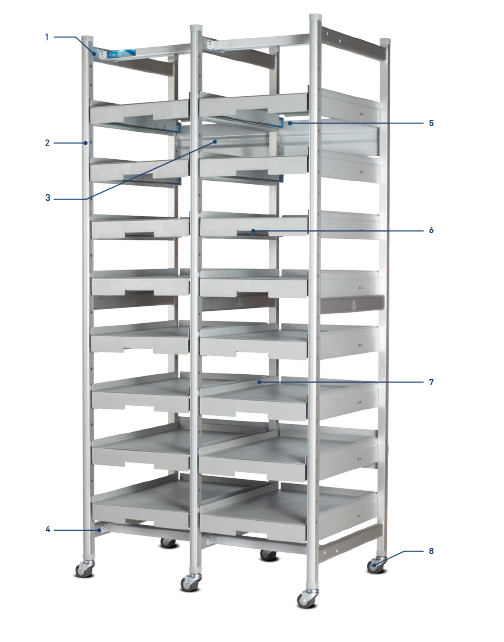

1. Frame Uprights - Frame uprights are made from tooled aluminum anodized tubing, 1 1/2” x 1 1/2” in diameter, for superior strength yet allowing the frame to be extra light. The aluminum also prevents corrosion, paint flaking and/or chipping.

Lock System

2. Rubber Strips - Frame uprights contain a front runner strip. This one-piece rubber strip helps prevent denting, chipping or scraping of misguided carts and product.

False Panel Backing

3. Stabilizer - Aluminum stabilizer cross members are made from 18 gauge aluminum to ensure stability and added strength, yet keeping the frame very light.

Extruded Aluminum Rails

4. Front and back supported frame uprights - Frame uprights have two aluminum front to back supports for added stability.

modu-max-cts
Inside Panels

5. Full Extensions - Heavy duty ball bearing glides 5 extend 110% allowing access to the entire tray when completely pulled out. Runners will automatically pull themselves back in the last 1 1/2 inches. Load capacity is 45 lbs. per shelf.

Casters

6. Pull Handle - Trays have full length pull handles allowing for easy access to product. Trays have powder coated solid galvanized surface.

Corner Bumpers

7. Retaining Walls - 1” rear and side retaining walls on the trays ensure product will remain in place while trays are opened and closed.

Doors

8. Caster - All casters are 3” swivel polyurethane braking double wheel for heavier load capacities.


Modu-Max CTS Open Rack Units

Doors

Modu-Max CTS OS Open Rack Units

Doors

Accessories


Basket Stop - BS

U’s - U

T’s - T

Basket Inlay - LINER

Labels - LBL

Modu-Max Label - MMLBL

“A” Left & Right Horizontal - MLOH & MRDH
“A” Left & Right Angled - MLDA & MRDA

Dust Cover - Available for Single, Double and Triple Sections

Flat Wire Shelf A (Fits A-Units) - WSA
Flat Wire Shelf B (Fits B-Units) - WSB

Flat Shelf Volkren A (Fits A-Units) - VOLKRENA
Flat Shelf Volkren CTS (Fits CTS-Units) - VOLKRENCTS

Flat Shelf Divider A (Fits A-Units) - DIV197
Flat Shelf Divider B (Fits B-Units) - DIV127

A 36” Wire - A36W B
36” Wire - B36W

A 35” Solid - A36S B
36” Solid - B36S

1” Tray - 1BC

11” Tray - 11T

2” Tray Clear & Gray - 2TC / 2T

2” Dividers Clear & Gray Long - 2DLC / 2DL
2” Dividers Clear & Gray Short - 2DSC / 2DS

4” Tray Clear & Gray - 4TC / 4T

4” Basket Clear & Gray - 4BC / 4B

4” Dividers Clear & Gray Long - 4DLC / 4DL
4” Dividers Clear & Gray Short - 4DSC / 4DS

8” Basket Clear & Gray - 8BC / 8B

8” Dividers Clear & Gray Long - 8DLC / 8DL
8” Dividers Clear & Gray Short - 8DSC / 8DS

11” Basket Clear & Gray - 11BC / 11B

11” Dividers Clear & Gray Long - 11DLC / 11DL
11” Dividers Clear & Gray Short - 11DSC / 11DS
