img-modu-max

High Density Supply Storage

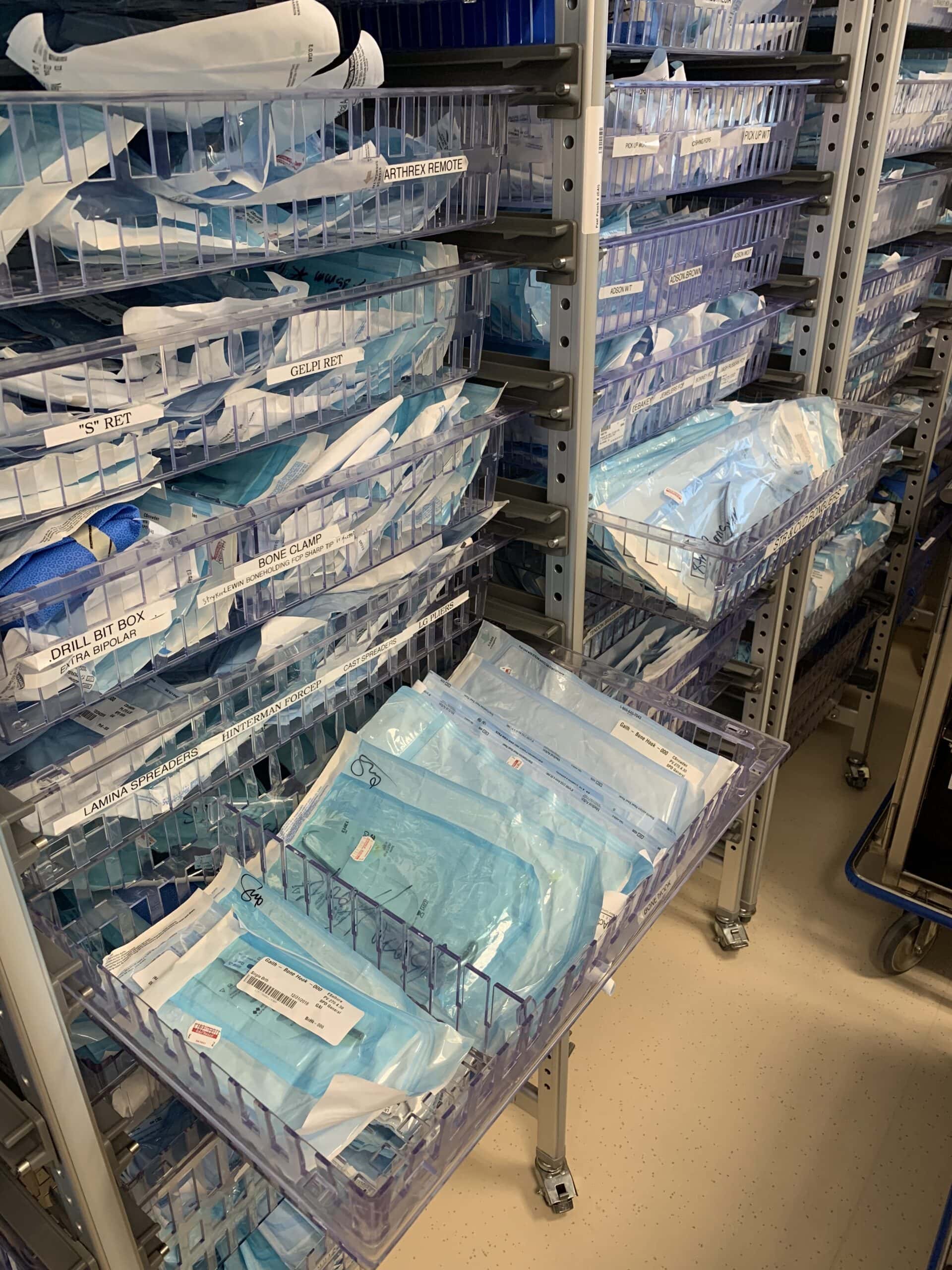

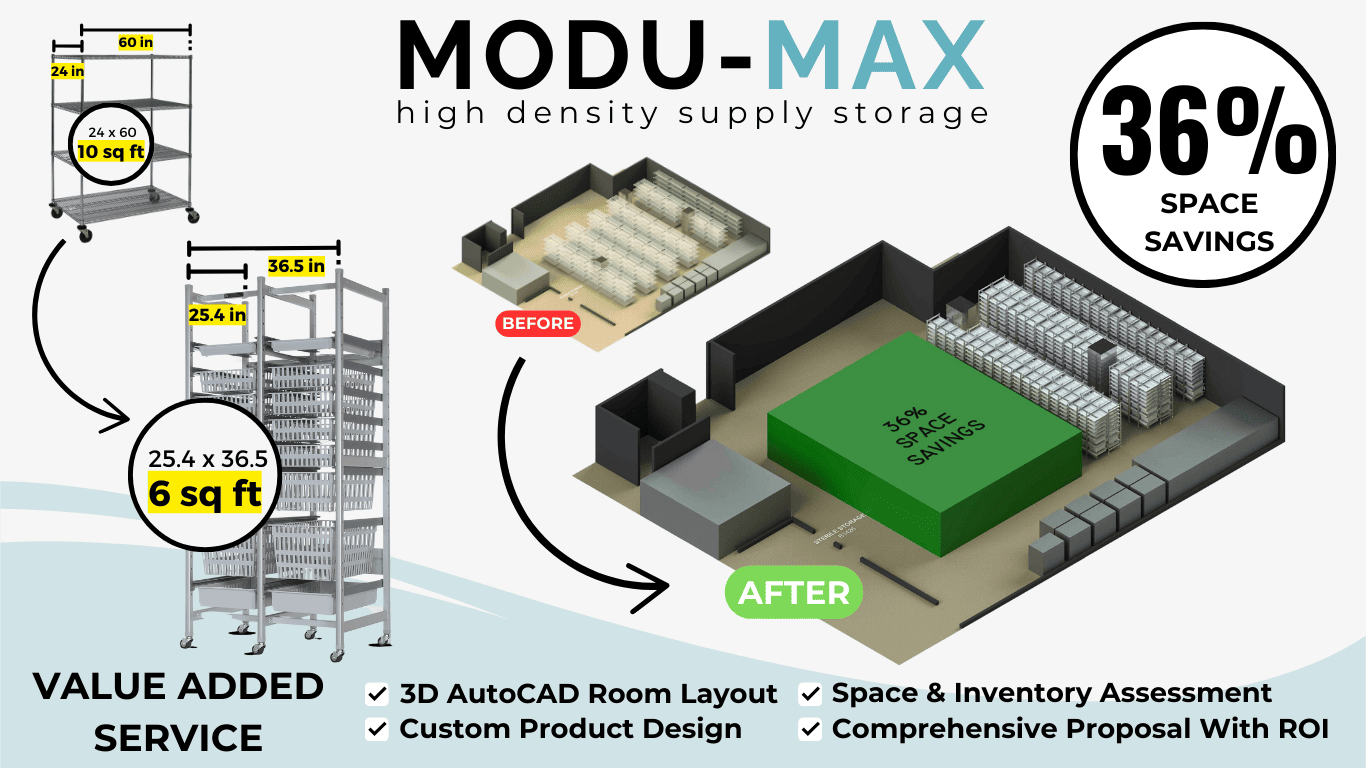

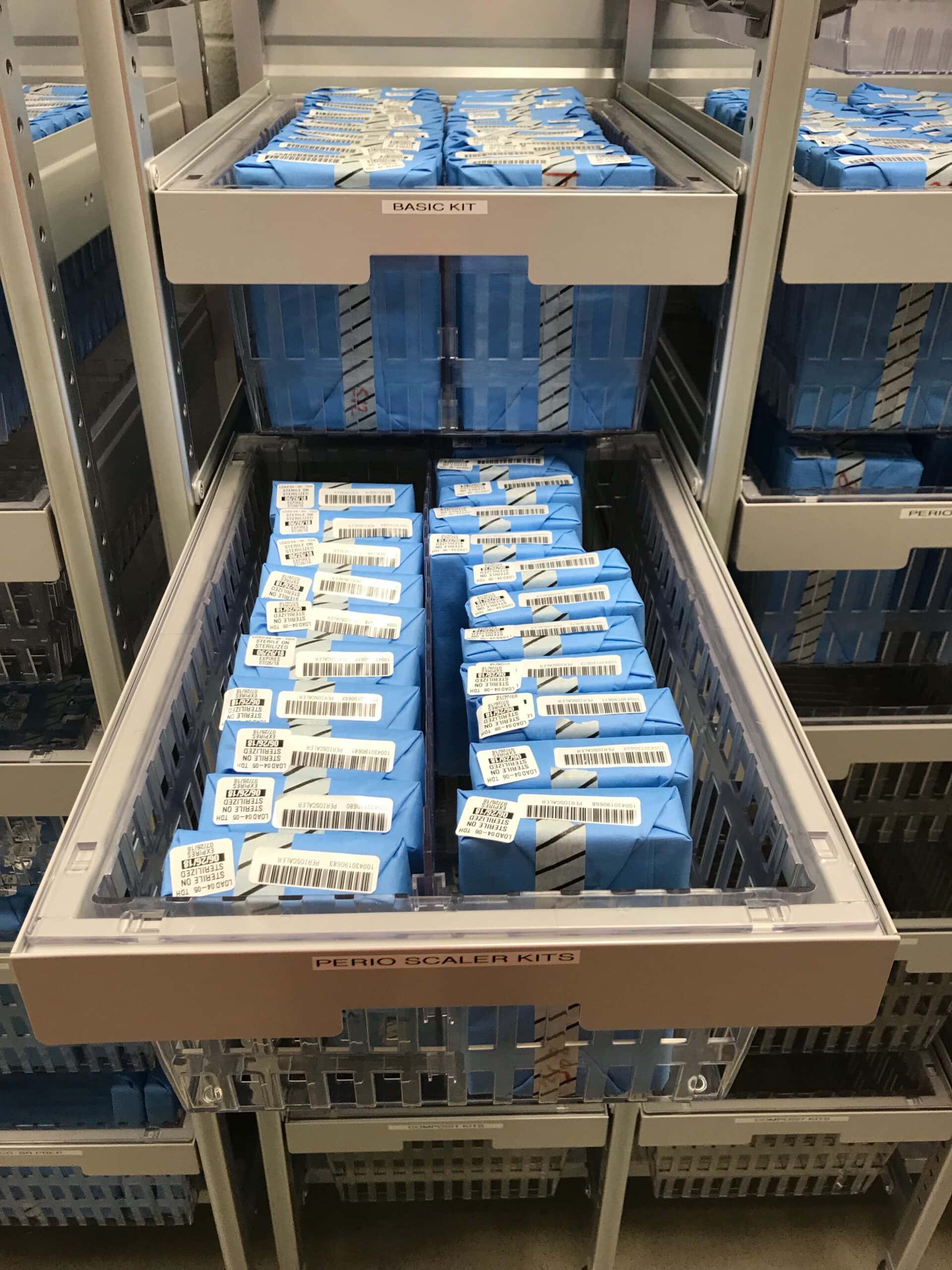

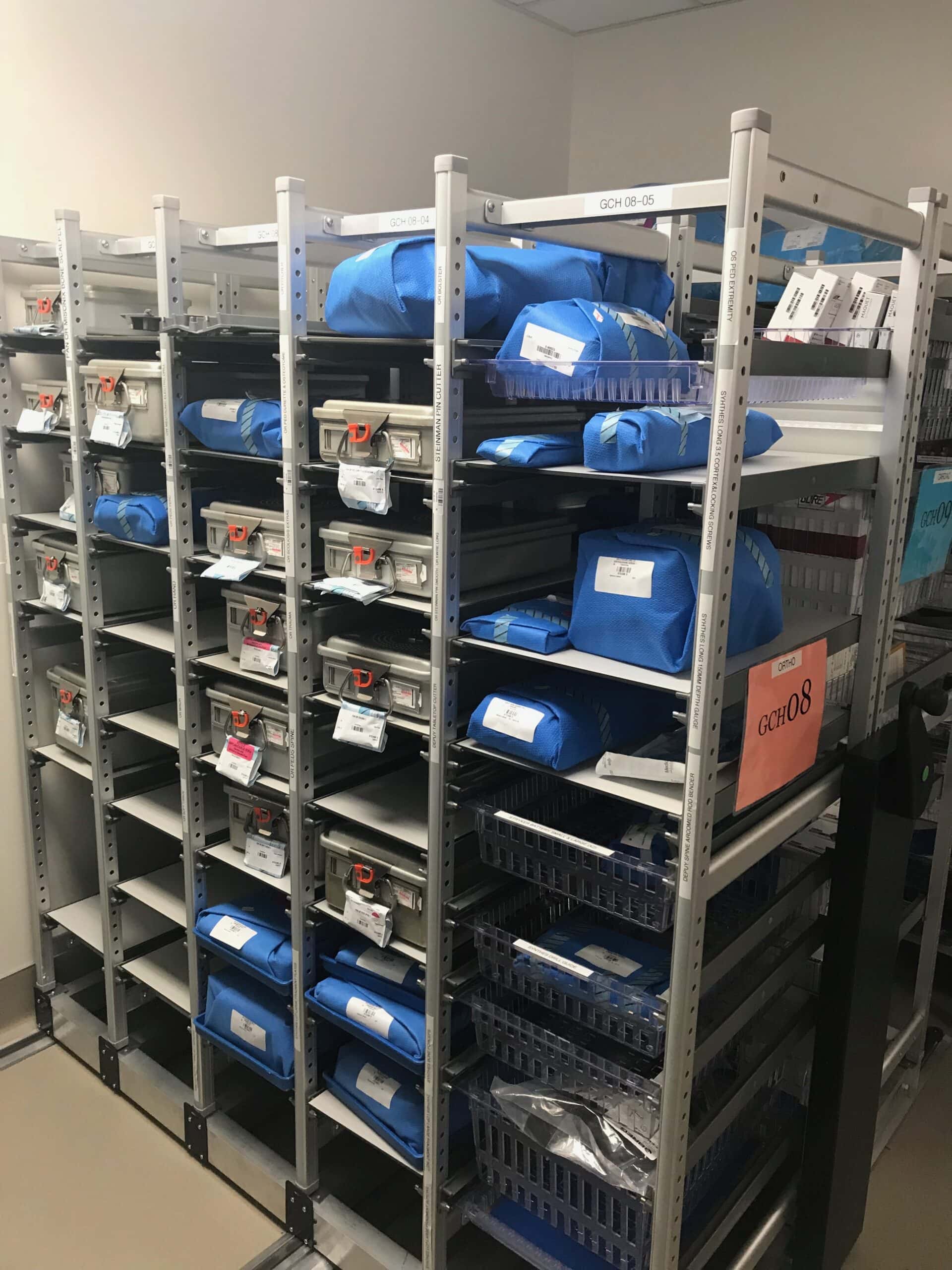

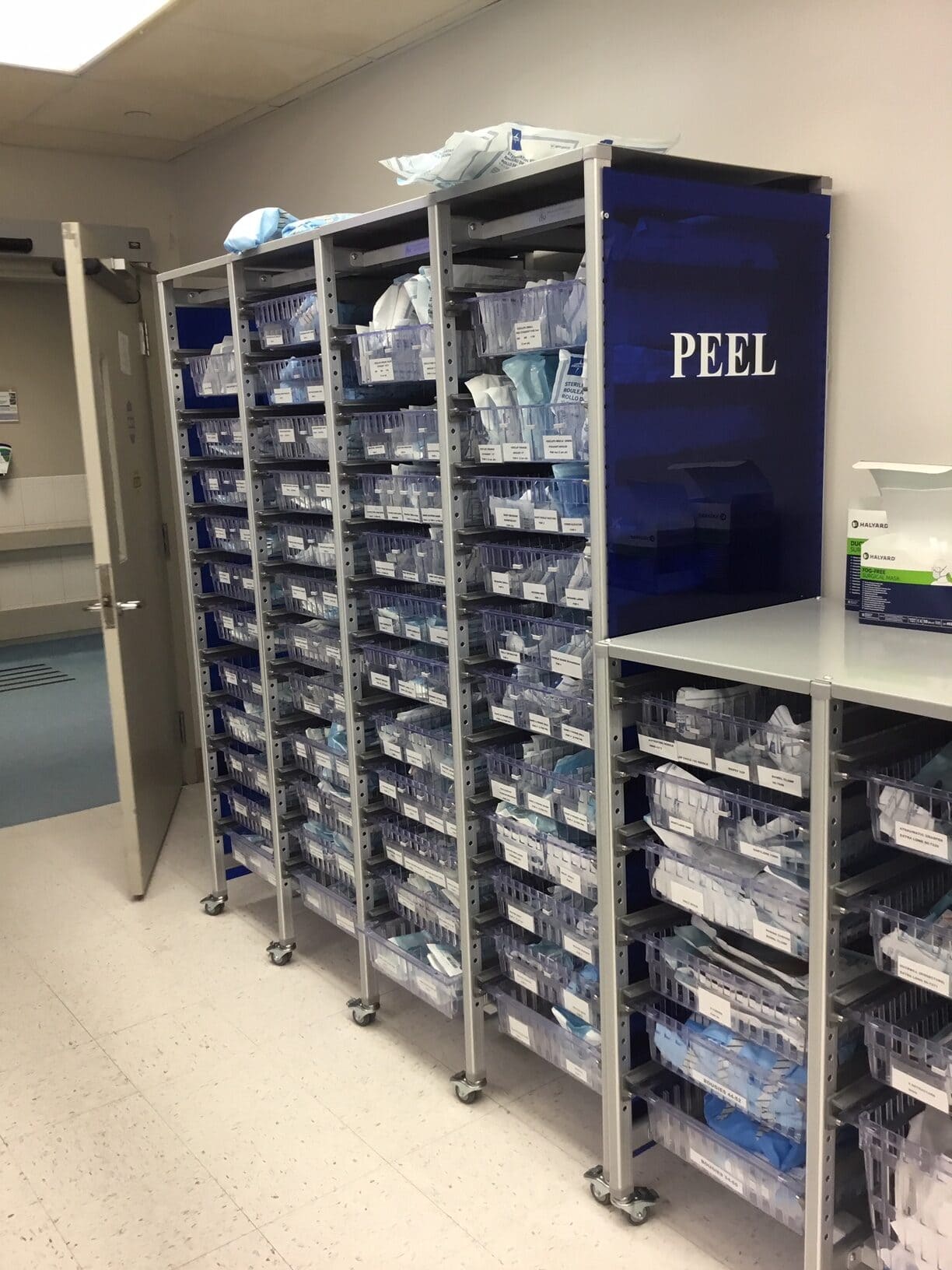

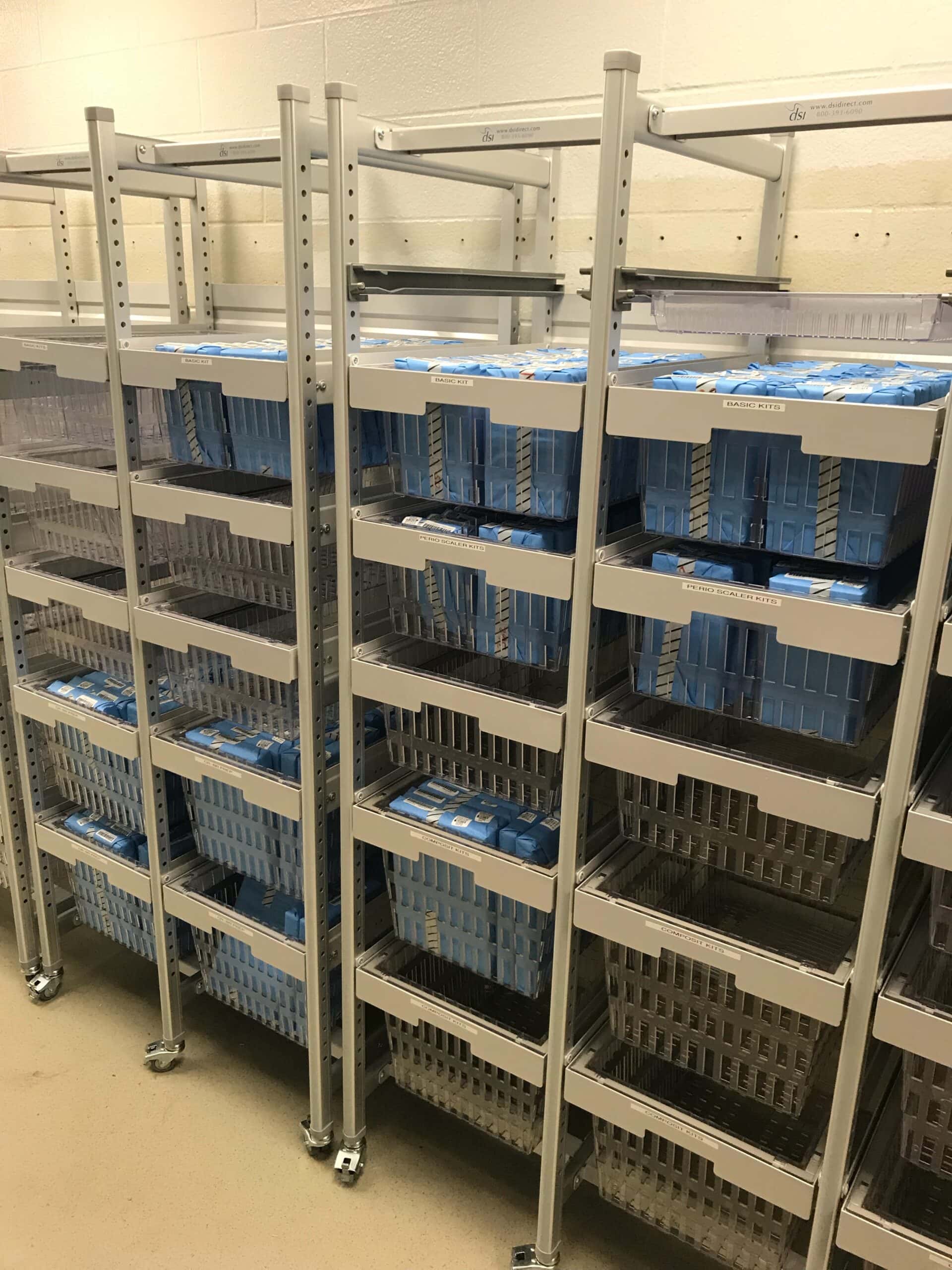

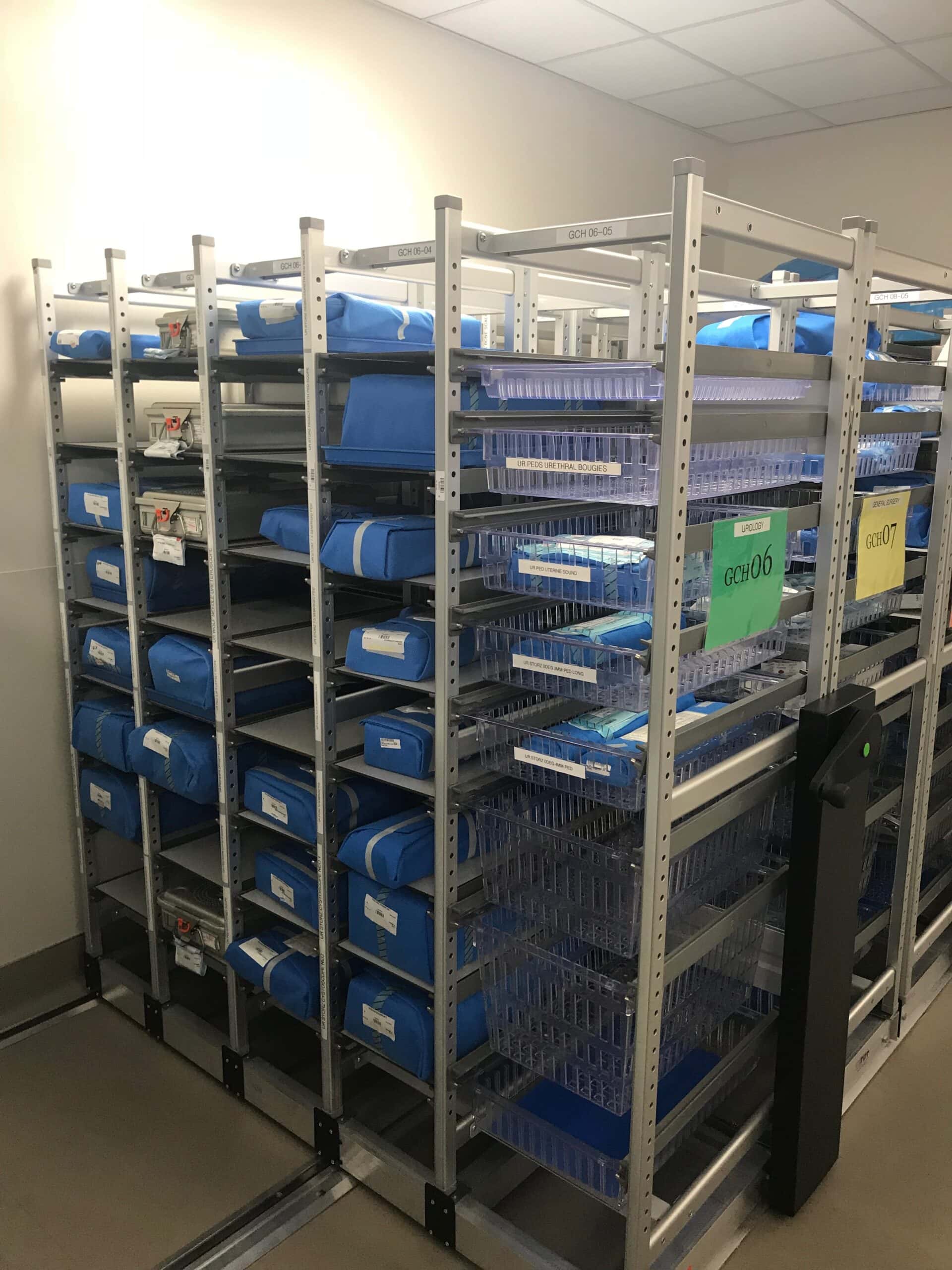

DSI's High Density Supply Storage (MODU-MAX™) are best used when storing small unit of measure inventory and supplies such as disposables, sterile peel packs, sutures, IV bags, and other types of inventory frequently managed by Supply Chain and Materials Management. Med/Surg, SPD, OR Core, Emergency Departments, and other departments require efficient storage for delivery quality patient care and top and bottom line cost savings for hospitals. The MODU-MAX™ system comes in two different variations, A or B. Our A configuration uses a deeper basket whereas our B system uses wider basket. Dust covers, catheter hanger accessories, flat shelves, solid bottom shelves, labeling, partitions and dividers, and other accessories are available as add-on's to the system. Compared to conventional wire shelving, our High Density Supply Storage can save our customers an average of 30-40% of space, allowing for room future growth and flexibility!

Get A Quote
modu-max-Frame Uprights
1. Frame Uprights - Frame uprights are made from tooled aluminum anodized tubing, 1 1/2” x 1 1/2” in diameter, for superior strength yet allowing the frame to be extra light. The aluminum also prevents corrosion, paint flaking and/or chipping.
modu-max-Rubber Strips
2. Rubber Strips - Frame uprights contain a front runner strip. This one-piece rubber strip helps prevent denting, chipping or scraping of misguided carts and product.
modu-max-Front and back supported frame uprights
3. Front and back supported frame uprights - Frame uprights have two aluminum front to back supports for added stability.
modu-max-Stabilizer
4. Stabilizer - Aluminum stabilizer cross members are made from 18 gauge aluminum to ensure stability and added strength, yet keeping the frame very light.
modu-max-Caster
5. Caster - All casters are 3” swivel polyurethane braking double wheel for heavier load capacities.
modu-max-Snap-in Rails
6. “Snap-in” Rails - Rails can be adjusted every 1” on center (no tools required) allowing baskets to be adjusted in seconds flat. The rails have the unique “snap-in” catch that locks the rail onto the frame.
modu-max-Built-in Stopper
7. Built-in Stopper - Rails have a “Built-in” stopper to prevent the basket extending through the rear of the frame.
modu-max-Height
8.Height - Overall height of the frame is 77 1/4” allowing them to fit through standard US doors.

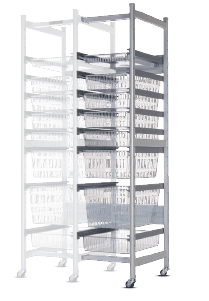

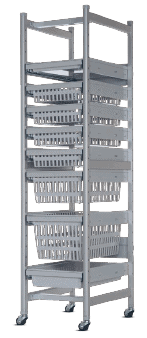

High Density Supply Storage "A" Units

High Density Supply Storage "A" Units

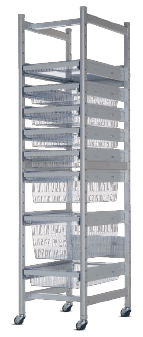

High Density Supply Storage "A" Units Clear Baskets

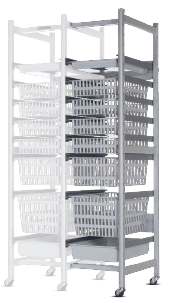

High Density Supply Storage"A" Units Gray Baskets

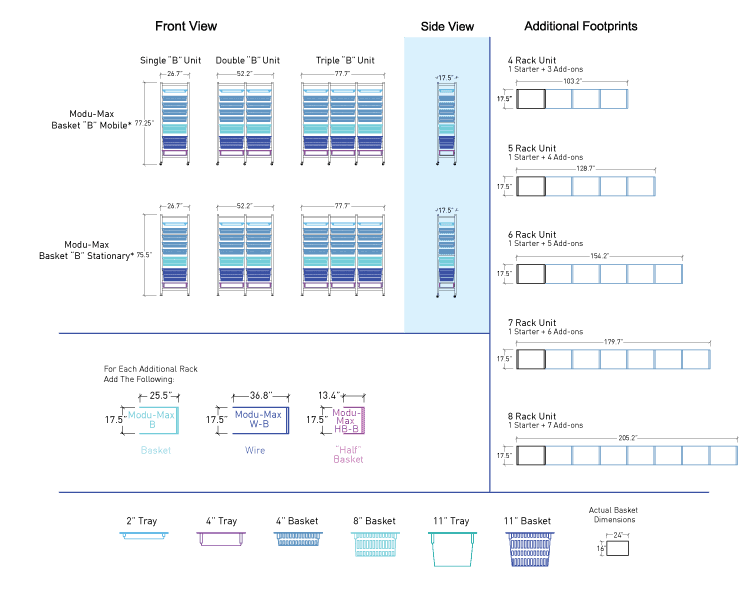

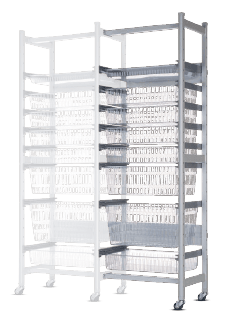

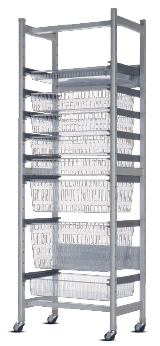

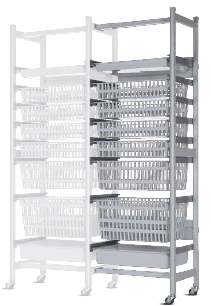

High Density Supply Storage "B" Units

High Density Supply Storage "B" Units
High Density Supply Storage "B" Units Clear Baskets

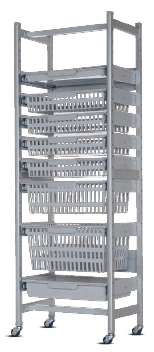

High Density Supply Storage "B" Units Gray Baskets

Accessories

accessories-01
Basket Stop - BS
accessories-02
U’s - U
accessories-03
T’s - T
accessories-04
Basket Inlay - LINER
accessories-05
Labels - LBL
accessories-06
1” Tray - 1BC
accessories-07
2” Tray Clear & Gray - 2TC / 2T
accessories-08
2” Dividers Clear & Gray Long - 2DLC / 2DL
2” Dividers Clear & Gray Short - 2DSC / 2DS
accessories-09
4” Tray Clear & Gray - 4TC / 4T
accessories-10
8” Tray - 8T
accessories-11
4” Basket Clear & Gray - 4BC / 4B
accessories-12
4” Dividers Clear & Gray Long - 4DLC / 4DL
4” Dividers Clear & Gray Short - 4DSC / 4DS
accessories-13
8” Basket Clear & Gray - 8BC / 8B
accessories-14
8” Dividers Clear & Gray Long - 8DLC / 8DL
8” Dividers Clear & Gray Short - 8DSC / 8DS
accessories-15
11” Basket Clear & Gray - 11BC / 11B
accessories-16
11” Dividers Clear & Gray Long - 11DLC / 11DL
11” Dividers Clear & Gray Short - 11DSC / 11DS
accessories-17
2” Basket Wire - 2WB
accessories-18
4” Basket Wire - 4WB
8” Basket Wire - 8WB
8” Basket Wire - 8WB
11” Basket Wire - 11WB
11” Basket Wire - 11WB
2” Dividers Wire Long & Short - 2DLW / 2DLS
2” Dividers Wire Long & Short - 2DLW / 2DLS
4” Dividers Wire Long & Short - 4DLW / 4DLS
4” Dividers Wire Long & Short - 4DLW / 4DLS
8” Dividers Wire Long & Short - 8DLW / 8DLS
8” Dividers Wire Long & Short - 8DLW / 8DLS
11” Dividers Wire Long & Short - 11DLW / 11DLS
11” Dividers Wire Long & Short - 11DLW / 11DLS
16”x24” Flat Shelf Solid A (Fits A-Units) - FSM-A 24”x16” Flat Shelf Solid B (Fits B-Units) - FSM-B
16”x24” Flat Shelf Solid A (Fits A-Units) - FSM-A
24”x16” Flat Shelf Solid B (Fits B-Units) - FSM-B
Flat Shelf Divider A (Fits A-Units) - DIV197 Flat Shelf Divider B (Fits B-Units) - DIV127
Flat Shelf Divider A (Fits A-Units) - DIV197
Flat Shelf Divider B (Fits B-Units) - DIV127
Flat Shelf Volkren A (Fits A-Units) - VOLKRENA Flat Shelf Volkren B (Fits B-Units) - VOLKRENB
Flat Shelf Volkren A (Fits A-Units) - VOLKRENA
Flat Shelf Volkren B (Fits B-Units) - VOLKRENB
Flat Wire Shelf A (Fits A-Units) - WSA Flat Wire Shelf B (Fits B-Units) - WSB
Flat Wire Shelf A (Fits A-Units) - WSA
Flat Wire Shelf B (Fits B-Units) - WSB
Cath Forward A (Fits A-Units) - MS-CATHA/FF
Cath Forward A (Fits A-Units) - MS-CATHA/FF
Cath Forward B (Fits B-Units) - MS-CATHB/FF
Cath Forward B (Fits B-Units) - MS-CATHB/FF
Cath Sideways A (Fits A-Units) - MS-CATHA/SF
Cath Sideways A (Fits A-Units) - MS-CATHA/SF
Cath Sideways B (Fits B-Units) - MS-CATHB/SF
Cath Sideways B (Fits B-Units) - MS-CATHB/SF
Heavy Duty A - MHDA
Heavy Duty A - MHDA
Heavy Duty B - MHDB
Cath Forward B (Fits B-Units) - MS-CATHB/FF
“A” Left & Right Horizontal - MLOH & MRDH “A” Left & Right Angled - MLDA & MRDA
“A” Left & Right Horizontal - MLOH & MRDH
“A” Left & Right Angled - MLDA & MRDA
“B” Left & Right Horizontal - MLSH & MRSH “B” Left & Right Angled - MLSA & MRSA
“B” Left & Right Horizontal - MLSH & MRSH
“B” Left & Right Angled - MLSA & MRSA
Modu-Max Label - MMLBL
Modu-Max Label - MMLBL

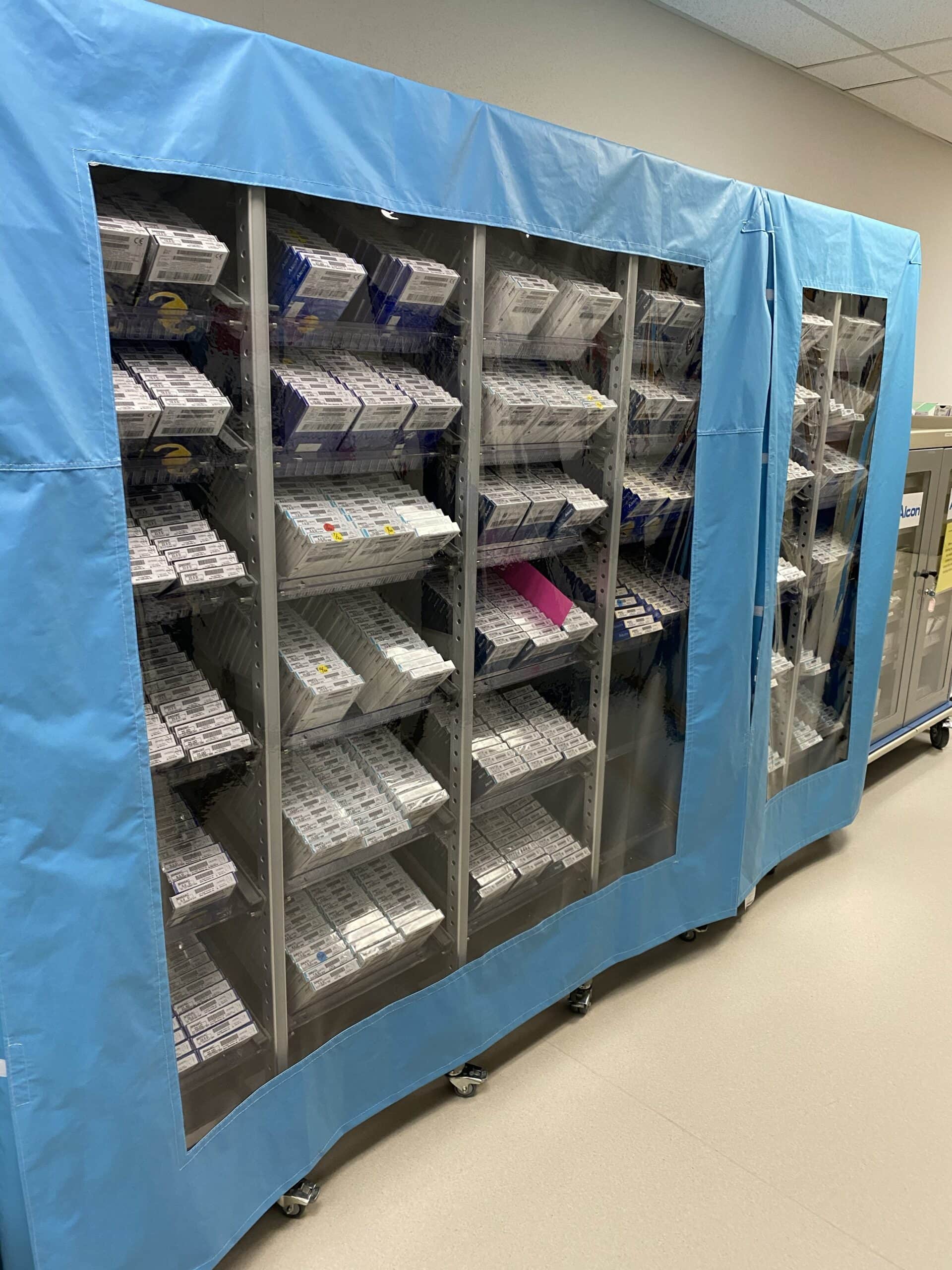

Dust Cover - Available for Single, Double and Triple Sections
Dust Cover - Available for Single, Double and Triple Sections
A 36” Wire - A36W B 36” Wire - B36W
A 36” Wire - A36W
B 36” Wire - B36W
A 35” Solid - A36S B 36” Solid - B36S
A 35” Solid - A36S
B 36” Solid - B36S
